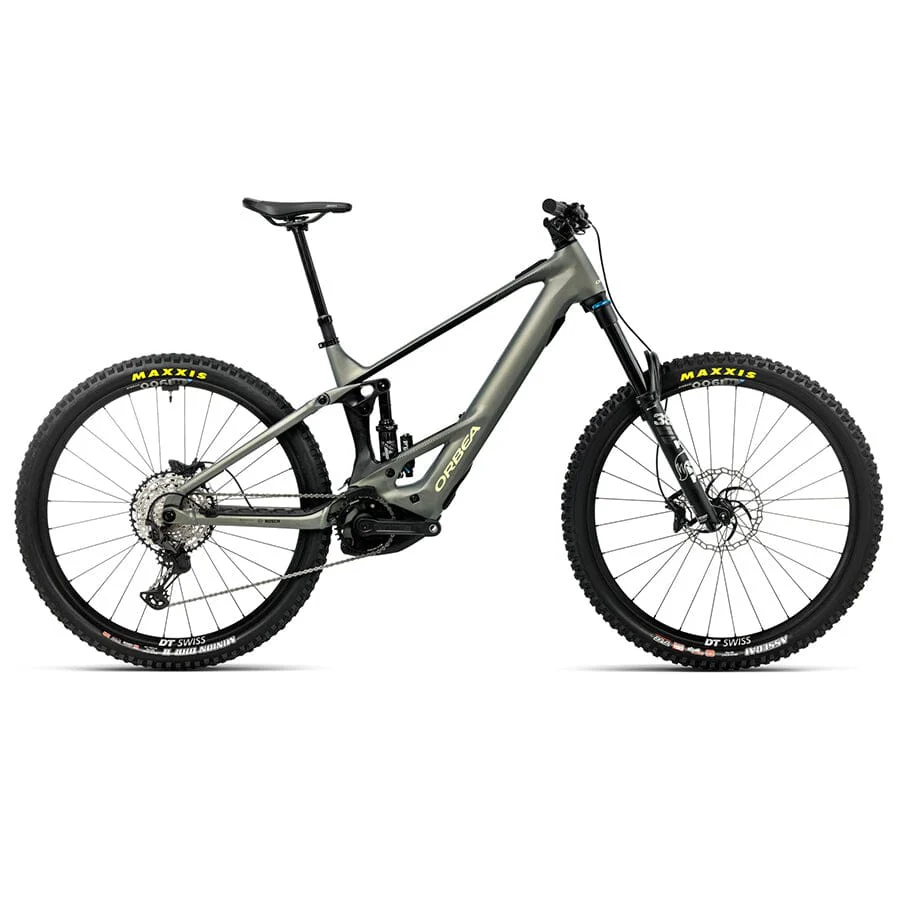

Orbea Wild H10 20mph
The Orbea Wild H10 20MPH is "The Yes Machine", built for a world beyond power where far and fast is taken for granted. Whatever question the trail poses, the answer is always yes. This bike delivers performance without compromises, combining lightweight construction with fully optimized engineering that leaves the factory ready for action with the latest Bosch motor and race-ready components.
Built around the Orbea Wild Hydro frame for 29" wheels with Concentric Boost 12x148 spacing, this platform achieves optimized weight distribution through advanced frame design. The braced frame construction adds rigidity near the bottom bracket while maintaining the e-optimized stiffness, approximately ten percent stiffer than equivalent mechanical bikes, required for similar performance without excess weight. The SBS battery system positions the substantial 750Wh Bosch Powertube lower in the frame than traditional systems, significantly lowering the center of gravity while keeping weight central for enhanced maneuverability and stability.
The Bosch Performance Line CX motor delivers endless power with precise control, paired with gravity-oriented kinematics featuring 170mm of travel front and rear. The Fox 38 Float Performance fork with 170mm travel and 3-position Grip damper works in harmony with the custom-tuned Fox Float X Performance Trunnion shock featuring 2-position adjustment and Evol LV air sleeve. Progressive 40% leverage ratio ensures predictable performance, absorbing small bumps while resisting bigger impacts, while 100% anti-squat maintains stable pedaling and 40-50% anti-rise reduces braking feedback.
The e-optimized geometry features long, low, and slack characteristics for stability with natural cornering and high-speed confidence. The short, straight Steep'n'Deep seat tube provides space for long-travel dropper posts up to 210mm on most sizes, while low standover allows riders to choose preferred reach rather than sizing for clearance. E-tuned bottom bracket drop and crank length optimize performance on technical climbs, while mullet-ready design with two shock linkages allows rear wheel size changes without affecting geometry.
Shimano XT Shadow Plus 12-speed drivetrain delivers reliable shifting designed for electric mountain bike power demands, while DT Swiss H-1900 Spline 30c tubeless-ready wheels provide dependable performance. Perfect for riders seeking one of the lightest full-power electricbikes that tames the wildest trails while feeling alive, energetic, and involving rather than detached, Wild H10 delivers performance through simplicity with nothing superfluous, only what's needed to ride hard.
Key Features
- Frame: Orbea Wild Hydro with SBS Battery System
- Motor: Bosch Performance Line CX
- Battery: 750Wh Powertube
- Suspension: Fox 38 Float Performance Fork with Fox Float X Performance Shock
- Drivetrain: Shimano XT Shadow Plus 12-Speed
- Wheelset: DT Swiss H-1900 Spline 30c TLR 15/110mm
Original: $7,348.95
-65%$7,348.95
$2,572.13More Images
Orbea Wild H10 20mph
The Orbea Wild H10 20MPH is "The Yes Machine", built for a world beyond power where far and fast is taken for granted. Whatever question the trail poses, the answer is always yes. This bike delivers performance without compromises, combining lightweight construction with fully optimized engineering that leaves the factory ready for action with the latest Bosch motor and race-ready components.
Built around the Orbea Wild Hydro frame for 29" wheels with Concentric Boost 12x148 spacing, this platform achieves optimized weight distribution through advanced frame design. The braced frame construction adds rigidity near the bottom bracket while maintaining the e-optimized stiffness, approximately ten percent stiffer than equivalent mechanical bikes, required for similar performance without excess weight. The SBS battery system positions the substantial 750Wh Bosch Powertube lower in the frame than traditional systems, significantly lowering the center of gravity while keeping weight central for enhanced maneuverability and stability.
The Bosch Performance Line CX motor delivers endless power with precise control, paired with gravity-oriented kinematics featuring 170mm of travel front and rear. The Fox 38 Float Performance fork with 170mm travel and 3-position Grip damper works in harmony with the custom-tuned Fox Float X Performance Trunnion shock featuring 2-position adjustment and Evol LV air sleeve. Progressive 40% leverage ratio ensures predictable performance, absorbing small bumps while resisting bigger impacts, while 100% anti-squat maintains stable pedaling and 40-50% anti-rise reduces braking feedback.
The e-optimized geometry features long, low, and slack characteristics for stability with natural cornering and high-speed confidence. The short, straight Steep'n'Deep seat tube provides space for long-travel dropper posts up to 210mm on most sizes, while low standover allows riders to choose preferred reach rather than sizing for clearance. E-tuned bottom bracket drop and crank length optimize performance on technical climbs, while mullet-ready design with two shock linkages allows rear wheel size changes without affecting geometry.
Shimano XT Shadow Plus 12-speed drivetrain delivers reliable shifting designed for electric mountain bike power demands, while DT Swiss H-1900 Spline 30c tubeless-ready wheels provide dependable performance. Perfect for riders seeking one of the lightest full-power electricbikes that tames the wildest trails while feeling alive, energetic, and involving rather than detached, Wild H10 delivers performance through simplicity with nothing superfluous, only what's needed to ride hard.
Key Features
- Frame: Orbea Wild Hydro with SBS Battery System
- Motor: Bosch Performance Line CX
- Battery: 750Wh Powertube
- Suspension: Fox 38 Float Performance Fork with Fox Float X Performance Shock
- Drivetrain: Shimano XT Shadow Plus 12-Speed
- Wheelset: DT Swiss H-1900 Spline 30c TLR 15/110mm
